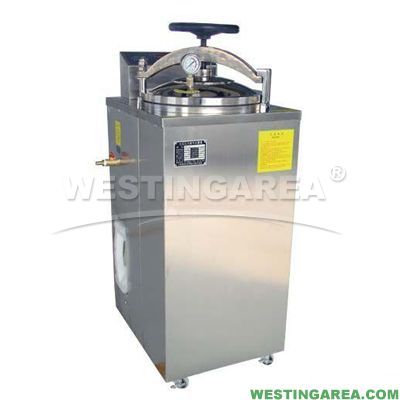

Vertical Sterilizer

WESTINGAREA supplied vertical sterilizer  have the excellent performance displayed as:

Auto-control type with drying function
Structure of handwheel type quick-door-open safety interlock device (accord with the 49th requirement of Vessel Regulations)
Material: outer and chamber are made of high quality stainless steel SUS304, acidproof, alkali resistance, anti-corrosive
Microcomputer intelligent control
Pressure safety interlock device, over temperature protection device
Auto-raising type packing ring,exhaust cold air automatically
Auto-exhause when over pressure, low water level alarm, auto-control when lack of water
Temperature range (109-135), sterilization time range (4-120min), drying time range (drying after sterilization) (30-240min), Max. design/work pressure (0.25MPa-0.22MPa)
Inner circulation exhaust type, with 3L steam collection bottle
Automatic inlet, heating, sterilization, exhaust and drying
Buzzer reminds after work and close-down automatically

Work process of sterilization and drying
a: sterilization temperature decreases to 102℃, then exhaust and drain
b: sterilization, exhaust and drain after sterilization
c: sterilization, exhaust, drain, drying
