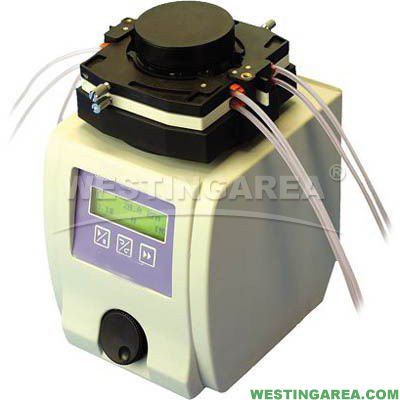

Flow Rate Type Peristaltic Pump
Item#：W00006703
Brand：EHSY
Origin：China
Description Tech Specs Shipping Detail Certification Accessories
Westingarea supplied high quality Flow Rate Type Peristaltic Pump:
Accept 4 kind of special pump heads.
Display can switch between flow rates and speed.
Calibration function for more accurate flow rates
Computer control available through RS485 communication
Prime key for fast filling and emptying
Accept 4 kind of special pump heads.
Display can switch between flow rates and speed.
Calibration function for more accurate flow rates
Computer control available through RS485 communication
Prime key for fast filling and emptying
| Item： | Flow Rate Type Peristaltic Pump | |
| Speed： | 1.0 to 100.0 rpm, reversible | |
| Speed precision： | 0.1 rpm | |
| Speed control： | Rotary coded switch coupled with membrane keypad | |
| Pump Head： | LEAD15-44 | |
| Tubing： | 16#25#17# | |
| Channel： | 4 | |
| Display： | 128 × 32 graphic LCD displays current running status | |
| Analog interface： | Start/stop and cw/ccw control, 0 to 5 V, 0 to 10V, and 4 to 20mA speed Control | |
| Communication： | RS485 | |
| Power supply： | AC 220 V ± 10% 50/60 Hz (standard) AC 110 V ± 10% 50/60 Hz (optional) | |
| Power consumption： | < 50W | |
| Operating condition： | Temperature 0 to 40 °C, Relative humidity < 80% | |
| Dimensions (L × W × H)： | 190 × 162 × 275 (mm) | |
| Drive weight： | 3.5 kg | |
| IP rating： | IP 31 |
CE
No Accessories!
