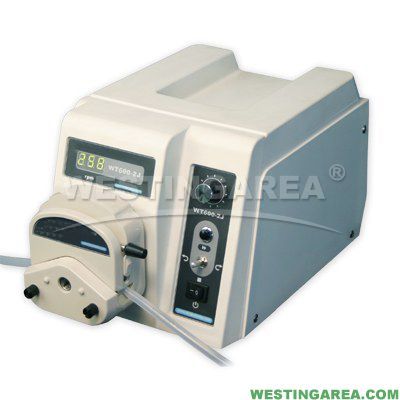

Basic Type Peristaltic Pump
Item#：W00006827
Brand：EHSY
Origin：China
Description Tech Specs Shipping Detail Certification Accessories
Westingarea supplied high quality Basic Type Peristaltic Pump:
Big torque output that can drive double channel pump head
Drived by DC brushless motor, big torque output, high efficiency and non maintenance
Three digital LED display running information
Using ON/OFF switch, button, rotated code switch to operate pump. It is simple and pratical
Prime key for fast filling and emptying
Equipped with RS485 interface to make the pump can be controlled by PC
Reserve output interface for monitoring working status by customers (Optional)
Suitable for more pump head and tubing to make the pump to match more application of customers
Power failure memory function to store working status and machine ID.
Big torque output that can drive double channel pump head
Drived by DC brushless motor, big torque output, high efficiency and non maintenance
Three digital LED display running information
Using ON/OFF switch, button, rotated code switch to operate pump. It is simple and pratical
Prime key for fast filling and emptying
Equipped with RS485 interface to make the pump can be controlled by PC
Reserve output interface for monitoring working status by customers (Optional)
Suitable for more pump head and tubing to make the pump to match more application of customers
Power failure memory function to store working status and machine ID.
| Item： | Basic Type Peristaltic Pump | |
| Speed Range： | 60-600 rpm | |
| Speed Control Precision： | ±1.0％ | |
| Speed Precision： | 1.0 rpm | |
| Pump Head： | KZ25 | |
| Tubing： | 15#24#35#36# | |
| Channel： | 1 | |
| Torque Output： | ≥1.60N·M | |
| Display： | 3 digital LED display | |
| Power Failure Memory Function： | Store working status and machine ID | |
| External Control Input Interface： | Start/Stop, CW/CCW, Speed Control (0-5V, 0-10V, 0-20mV, TTL are optional) | |
| Communication Interface： | RS485 | |
| Output Interface： | Start/Stop, CW/CCW, Speed (25 pluse per circle) | |
| Power Supply： | AC 176-264V 50/60Hz | |
| Power Consumption： | ≤190W | |
| Cooling Method： | Fan forced air-cooled | |
| Working Environment： | Temperature： 0-40℃ Relative Humidity： ＜80% | |
| Drive Dimension (L×W×H)： | 292×185×180 (mm) | |
| Drive Weight： | 5.2 Kg |
CE
No Accessories!
