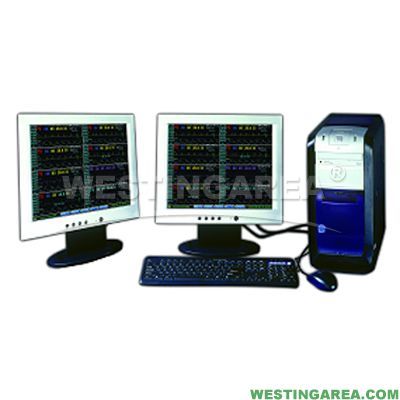

Central Monitoring System

Item#：W00001658

Brand：EHSY

Origin：China

Qty.   add to personal list

*Welcome to contact us sales@westingarea.com

Description Tech Specs Shipping Detail Certification Accessories

Westingarea supplied high quality Central Monitoring System has the excellent performance displayed as：

Features:
Central Monitoring System is a kind of intelligent central multi-bed and multi-physiological parameter monitoring system, connected by wire or wireless network with bedside units, suitable for performing continuous monitoring of several patients in CCU and ICU wards simultaneously.
Connected to max 66 bedside units at the same time
Up to 64 waveforms for 32 bedside monitors (dual-screen display)
17 types of arrhythmia analysis
Collect and display multiple physiological parameters and waveforms measured by the bedside units: ECG/HR/RESP/SPO2/PULSE/NIBP/2-TEMP/2-IBP/EtCO2/Multigas (N2O, O2, and AA)/ICG (C.I.)
All physiological parameters and waveforms (13 channels at most) presentation for one patient
Possible to set up the color of each individual parameter text or waveform
Optional language: English/French/Chinese
Automatic data save in case of power failure
Alarm limits set up for all parameters, audible and visible alarms for exceeding the limit
Connection available network system of the hospital

Easy and Convenient operation:
-Large Font screen
-Provide indication of probe detachment
-Provide detailed notes to facilitate operation
-Can record, search and classify the abnormal ECG events
-Bi-directional communication with bedside unit
-Central Unit able to remotely control the bedside unit to measure BP

Large Storage Capacity：
-96 hours holographic ECG waveform storage and Replay
-240 hours trend graph review
-1000 alarm record
-30000 patient historical data
-Alarm data saves all physiological parameters and waveforms before and after the alarm

Strong Printing functions
-Support various kinds of printers
-Can print case reports at any time so as to timely master the patient’s info
-Copy screen print for single bed, with 13 channels of waveform at most.
-Data review print including the trend graph review, trend list replay, ECG review and alarm incident review

Basic configuration for the host computer: Intel Pentlum IV 2.4G CPU or above, 256MB RAM or above, Windows 2000+SP4 or Windows XP+SP2 system, 80GB Hard Disk or above, 40x CD-ROM or above, 17”TFT
