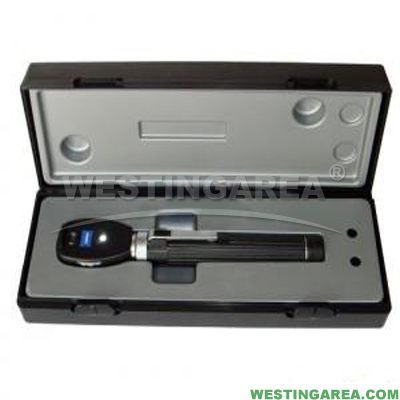

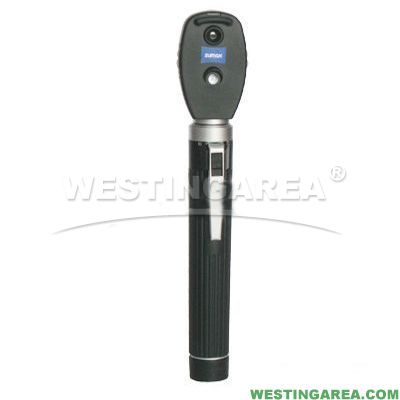

Direct Opthalmoscope
Item#：W00000426
Brand：EHSY
Origin：China
Description Tech Specs Shipping Detail Certification Accessories
Westingarea supplied high quality direct opthalmoscope has the excellent performance displayed as：
The direct ophthalmoscope is used for examining the interior structures of the eye, especially the retina.
Features:
1. DM6C is available with AA alkaline or Ni-MH batteries. Bulb power: 2.5V, 1.6W.
2. Smart design and comfortable operation.
3. Suitable for small pupil.
4. 19 lenses from 0D to ±20D: 0D, ±1D, ±2D, ±3D, ±4D, ±6D, ±8D, ±10D, ±15D, ±20D.
5. Aperture wheel: red-free filter, Large spot, small spot, hemispot.
Technical Specification:
Name of aperture Dimension of aperture Dimension of Image Angle of view
Red-free filter F2.4 F2.3 7°44’24”
Large spot F2.4 F2.3 7°44’24”
Small spot F1.2 F1.15 3°52’28”
Hemispot F2.4 F2.3 7°44’24”
Illumination of light spot: Light spot be apart from reflector 150mm: =85 lx
Diopter: 0D, ±1D, ±2D, ±3D, ±4D, ±6D, ±8D, ±10D, ±15D, ±20D
Aperture: red-free filter, Large spot, small spot, hemispot
Rated voltage: AA alkaline or Ni-MH batteries
Electrical Safety Standard: GB9706.1, internal power equipment
| Item： | Direct Opthalmoscope | |
| Large spot： | F2.4 F2.3 7°44’24” | |
| Red-free filter： | F2.4 F2.3 7°44’24” | |
| Small spot： | F1.2 F1.15 3°52’28” | |
| Hemispot： | F2.4 F2.3 7°44’24” | |
| Diopter： | 0D, ±1D, ±2D, ±3D, ±4D, ±6D, ±8D, ±10D, ±15D, ±20D | |
| Illumination of light spot： | Light spot be apart from reflector 150mm： =85 lx |
CE, FDA
No Accessories!
