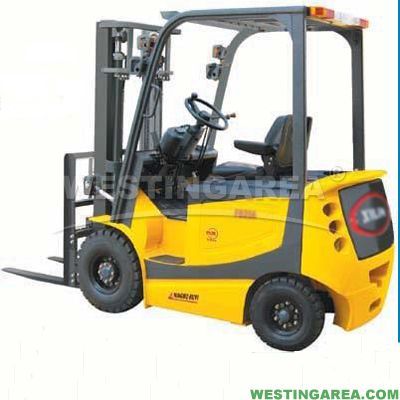

Forklift
Item#：W00001359
Brand：EHSY
Origin：China
Description Tech Specs Shipping Detail Certification Accessories
WESTINGAREA supplied Electric forklift have the excellent performance displayed as:
The machine features superior performance, operating convenience, wide vision, strong power, agile steering, reliable brake, little noise, advanced controller and beautiful appearance. The design is very suitable for the body, according to human engineering. Our electric forklift has gotten CE.GS certificate.
| Item： | Forklift | |
| Model： | 3m,full free lift | |
| Power： | electric(battery) | |
| Capacity/rated load (kg)： | 2000 | |
| Load centre distance (mm)： | 500 | |
| Load distance,centre of drive axle to fork (mm)： | 395 | |
| Service weight (with battery)(Kg)： | 3280 | |
| Axle loading,laden front/rear (Kg)： | 4558/621 | |
| Axle loading,unladen front/rear(Kg)： | 1272/1908 | |
| Travel speed, laden/unladen (Km/h)： | 0-13.5 | |
| Lift speed, laden/unladen (m/s)： | 0-270 | |
| Lowering speed, laden/unladen(m/s)： | <600 | |
| Max.gradeability, laden/unladen(%)： | 15 | |
| Drive motor rating S2 60 min(Kw)： | 7 | |
| Lift motor rating at S3 15%(Kw)： | 8.2 | |
| Battery voltage,nominal capacity K5(V/Ah)： | 48/450 | |
| Battery weight(kg)： | 820 | |
| Battery dimension l/w/h(mm)： | 980x660x456 | |
| Type of drive control： | DC/AC | |
| Operating pressure for attachments bar： | 17Mpa | |
| Oil valume for attachments(l/min)： | 25.6 | |
| Sound level at the driver's ear acc.to DIN 12053(dB(A))： | <63 |
CE.GS
No Accessories!
