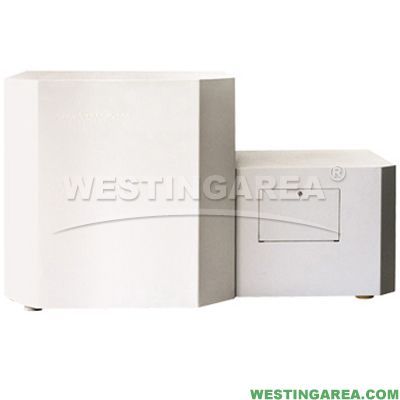

Ash Fusion Tester

1. The unique control system and CCD photographing technique are applied so that the testing of the soot melt ability is done automatically.
2. With the patent technology, the impact of the heat radiation on the video camera is reduced, so the video camera service life can be longer.
3. The use of the advanced heating elements and heat insulator ensure good air tightness, accurate temperature control, low fault rate, stepless voltage regulation of transformer without transient surge.
4. Real-time observe test process of the accurate control of soot cone; Automatic judgment of the four hot melts temperatures.
5. The test images and data are automatically saved to facilitate further inspection and analysis.
6. Easy to operate.

Item：		Ash Fusion Tester
Temperature Control Range：		Room Temperature~1600℃
Resolution Response：		1℃
Heating Rate：		<900℃ （15 ～ 20） ℃/min / ＞ 900℃（5±1）℃/min
Temperature-controlled Precision：		< 5℃
Experiment Condition：		Weak Reducibility , Oxidizability
Max Power：		6.5kW
Sample Numbers：		5
Voltage：		AC220±10 ﹪ 50Hz±1Hz
Weight：		80kg
