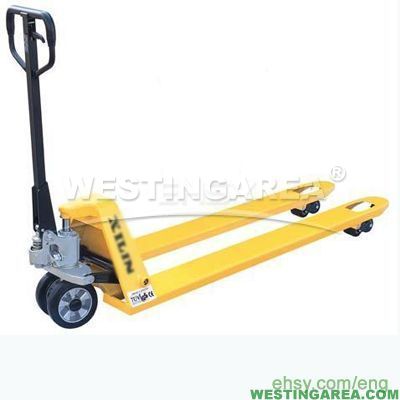

Hand Pallet Truck(Poluyrethane,1)
Item#：W00006003
Brand：EHSY
Origin：China
Description Tech Specs Shipping Detail Certification Accessories
WESTINGAREA supplied Hand Pallet Truck have the excellent performance displayed as:
Full hydraulic system.Bullet connection between steering shaft and pump piston. It is convenient to replace the rear wheel.
Easy to maneuver with 210 degrees turning radius.
Special lowering valve to control the trucks durable.
Number of pump strokes-10.Lift height per stroke:12mm.
Reliable oil leak-proof hydraulic system.
12 lubrication grease nipples on all movable parts for easy maintenance.
Adjustable pump cap ensure a long service life.
Ergonomic Large Rubber handle with three control lever.
| Item： | Hand Pallet Truck(Poluyrethane,1) | |
| Capacity(Q(kg))： | 2500 | |
| Service weight(kg)： | 65-80 | |
| Max. lift height(h3(mm))： | 115 | |
| Total height(h14(mm))： | 1224 | |
| Overall length(l1(mm))： | 1533/1603 | |
| Fork dimensions(s/e/l)： | 45/160/1150(1100/1220) | |
| Distance between fork-arms(b5(mm))： | 520/550/685 | |
| Aisle width for pallets 1000x1200 crossways(Ast(mm))： | 1733/1803 | |
| Aisle width for pallets 800x1200 lengthways(Ast(mm))： | 1783/1803 | |
| Turning radius(Wa(mm))： | 1266/1336 | |
| Wheels material： | Poluyrethane | |
| Wheels number： | 1 |
