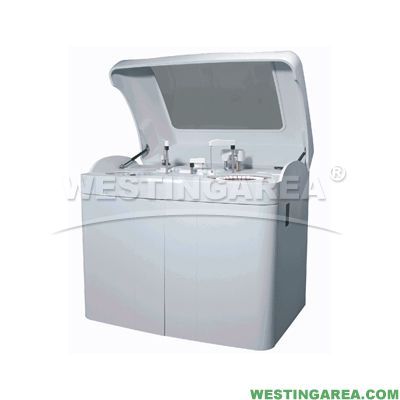

Auto Biochemistry Analyzer
Item#：W00002296
Brand：EHSY
Origin：China
Description Tech Specs Shipping Detail Certification Accessories
Westingarea supply high quality Auto Biochemistry Analyzer.
Specifications∶
·Assay methods: End Point, Kinetic, Fix time etc.
·Principle: Photoelectric Colorimetry
·Light Source: Halogen lamp 12V/20W
·Photometry range: 0~3Abs
·Resolution: 0.0001Abs
·Wavelength: 10 wavelengths optional (340nm~800nm)
·Throughput: 400 tests/hour
·Reagent tray: 60 reagent positions
·Sample tray: 75 sample positions
·Reaction tray: 120 reaction positions
·Sample volume: 2~100ul, with 0.1ul increment
·Reagent volume: R1:10~500ul, R2: 10~500ul, with 0.5ul increment
·Minimum reaction volume: 150ul
·Maximum reaction time: 10 minutes
·Water Consumption: 4L/hour under working status
·Clean unit: 8-step auto-washing system
·Calibration: Calibration reset, select best test point by reaction curve without second
calibration
·Control rules: Westgard multi-rule, Cumulative sum check, Twin plot
·Temperature control: incubator 37±0.1℃
·Power supply: AC110/230(1±10%)V, 50/60Hz, 500VA
·Ambient: Operating temperature: 10~30℃
Relative humidity: ≤85%
Atmospheric pressure: 86~106kPa
·Assay methods: End Point, Kinetic, Fix time etc.
·Principle: Photoelectric Colorimetry
·Light Source: Halogen lamp 12V/20W
·Photometry range: 0~3Abs
·Resolution: 0.0001Abs
·Wavelength: 10 wavelengths optional (340nm~800nm)
·Throughput: 400 tests/hour
·Reagent tray: 60 reagent positions
·Sample tray: 75 sample positions
·Reaction tray: 120 reaction positions
·Sample volume: 2~100ul, with 0.1ul increment
·Reagent volume: R1:10~500ul, R2: 10~500ul, with 0.5ul increment
·Minimum reaction volume: 150ul
·Maximum reaction time: 10 minutes
·Water Consumption: 4L/hour under working status
·Clean unit: 8-step auto-washing system
·Calibration: Calibration reset, select best test point by reaction curve without second
calibration
·Control rules: Westgard multi-rule, Cumulative sum check, Twin plot
·Temperature control: incubator 37±0.1℃
·Power supply: AC110/230(1±10%)V, 50/60Hz, 500VA
·Ambient: Operating temperature: 10~30℃
Relative humidity: ≤85%
Atmospheric pressure: 86~106kPa
Features∶
·24 hour non-stop water cycle cooling system to ensure reagent at 2-8℃
·Dual-unattached durable ceramic syringes to ensure accuracy & precision
·Collision protection in both vertical and horizontal directions, stop & alarm automatically
once touching barrier, not affect former tests
·Automatic eligible cuvettes detection & selection
·Select best test point by reaction curve, create new factor automatically
·High accurate optical system
·Support LIS interface
·24 hour non-stop water cycle cooling system to ensure reagent at 2-8℃
·Dual-unattached durable ceramic syringes to ensure accuracy & precision
·Collision protection in both vertical and horizontal directions, stop & alarm automatically
once touching barrier, not affect former tests
·Automatic eligible cuvettes detection & selection
·Select best test point by reaction curve, create new factor automatically
·High accurate optical system
·Support LIS interface
G.W(kg):520
Carton size(mm)(L*H*M): 1340*900*1340
| Item： | Auto Biochemistry Analyzer | |
| Assay methods： | End Point, Kinetic, Fix time etc. | |
| Principle： | Photoelectric Colorimetry | |
| Light Source： | Halogen lamp 12V/20W | |
| Photometry range： | 0~3Abs | |
| Resolution： | 0.0001Abs | |
| Wavelength： | 10 wavelengths optional (340nm~800nm) | |
| Throughput： | 400 tests/hour | |
| Reagent tray： | 60 reagent positions | |
| Sample tray： | 75 sample positions | |
| Reaction tray： | 120 reaction positions | |
| Sample volume： | 2~100ul, with 0.1ul increment | |
| Reagent volume： | R1 (10~500ul), R2 (10~500ul), with 0.5ul increment | |
| Minimum reaction volume： | 150ul | |
| Maximum reaction time： | 10 minutes | |
| Water Consumption： | 4L/hour under working status | |
| Clean unit： | 8-step auto-washing system | |
| Calibration： | Calibration reset, select best test point by reaction curve without second calibration | |
| Control rules： | Westgard multi-rule, Cumulative sum check, Twin plot | |
| Temperature control： | incubator 37±0.1℃ | |
| Power supply： | AC110/230(1±10%)V, 50/60Hz, 500VA | |
| Ambient： | Operating temperature 10~30℃ | |
| Relative humidity： | ≤85% | |
| Atmospheric pressure： | 86~106kPa |
| G.W(kg)： | 520 | |
| Carton size(mm)(L*H*M)： | 1340*900*1340 |
CE
No Accessories!
