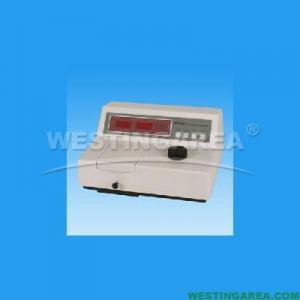

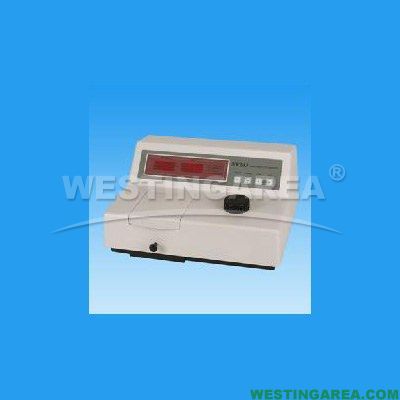

VIS Spectrophotometer

WESTINGAREA supplied  VIS Spectrophotometer have the excellent performance displayed as:

It is simple,reliable and economical,widely used in types of laboratories including educational,clinical,industrial and environmental labs for qualitative and quantitative analysis.

Item：		VIS Spectrophotometer
Dynamic Range：		335-1000nm
Optical System：		Single beam,C-T type,1200L/mm grating
Path Length：		10/30mm
Spectral Bandwidth：		10nm
Wavelength Accuracy：		±2nm
Wavelength Repeatability：		1 nm
Stray Light：		≤0.5%T(360nm)
Photometric Mode：		Transmittance,Absorbance,Concentration
Photometric Range：		0-199.9%T,-0.3-2.5A,1-9999F,0-9999C
Photometric Accuracy：		±1.0%T
Photometric Repeatability：		0.5%T
Stability：		±0.003A/h(At 500nm after 1 hour energization)
Basic Measurement：		Single Wavelength and Concentration Measurement
100%T/0%T Setup：		automatic
Sample Compartment：		10 or 30mm Cell Holder can be put in
Data Output：		RS-232C,digital output
Software Name：		Specsoft
Software Function：		Photometric Measurement(T,A,C),Quantitative Measurement(Standard Curve)
Display Mode：		LED display T,A,C,F
Light Source：		Tungsten lamp(socket type,20W/12V,2000h)
Power Requirement：		(220±10% 50Hz/110V±10% 60Hz),45W
Standard Cell Holder：		10mm path length,and four cells can be put in.(30mm path length as optional)
Cell：		4 pcs optical glass cells with 10mm path length
Actual Dimensions(W*D*H)：		385*310*190mm
Shipping Dimensions(W*D*H)：		456*378*262mm
Net Weight：		≤6.5Kg
Gross Weight：		≤8.0Kg
